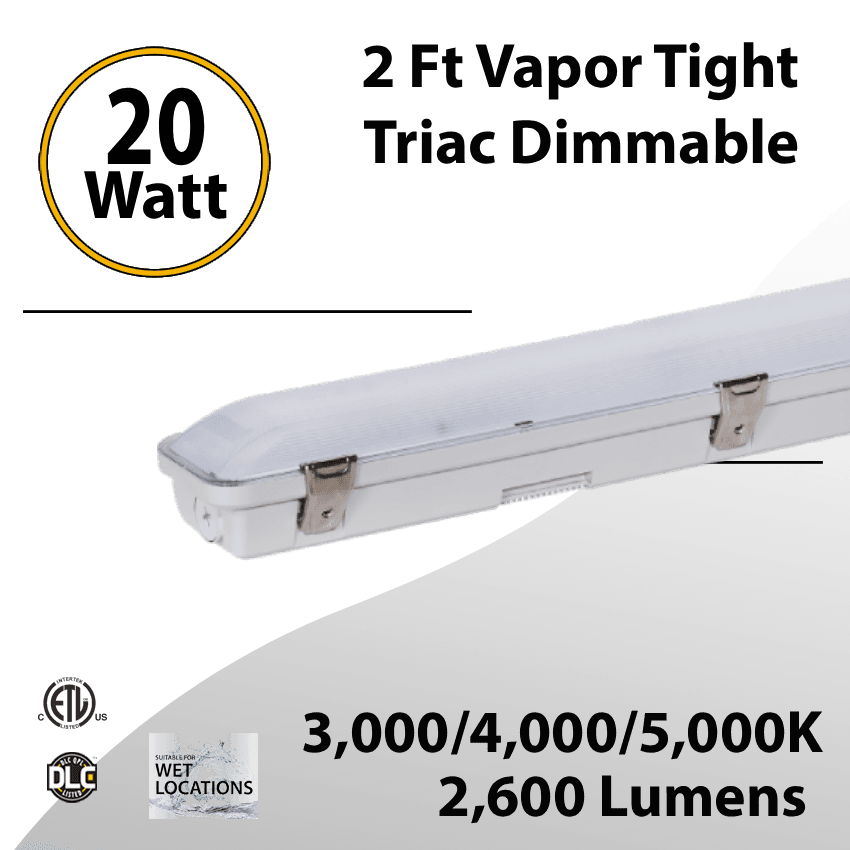

LED Vapor Tight Fixture 2FT 20W 2600Lm 3CCT IP66 Triac Dimmable
The LED Vapor Tight Fixture 2FT 20W 2600Lm delivers efficient, uniform lighting for parking garages, car washes, warehouses, and commercial spaces. Featuring IP66 protection, a durable polycarbonate housing, 3CCT selectable color temperatures (3000K/4000K/5000K), and Triac dimming, this compact fixture offers versatile illumination, moisture resistance, and long-lasting performance for demanding indoor and outdoor applications where dependable lighting is essential. Sold in box of 6.
Trusted by hundreds of businesses, municipalities & contractors See Projects

Electrical:
| Watts: | 20 |
| Operating Voltage: | 100-277 VAC |
| Operating Temperature: | -13° F to 113° F |
| Operating Humidity: | 10% to 100%RH |
| Power Factor (PF): | >97% |
| Power Supply Efficiency: | >97% |
Photometric:
| LED Luminous Flux (lm): | 2600 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | Tunable 3/4/5K |
| Lens type: | Clear |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 120º |
Mechanical:
| IP Rating: | IP66 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | White |

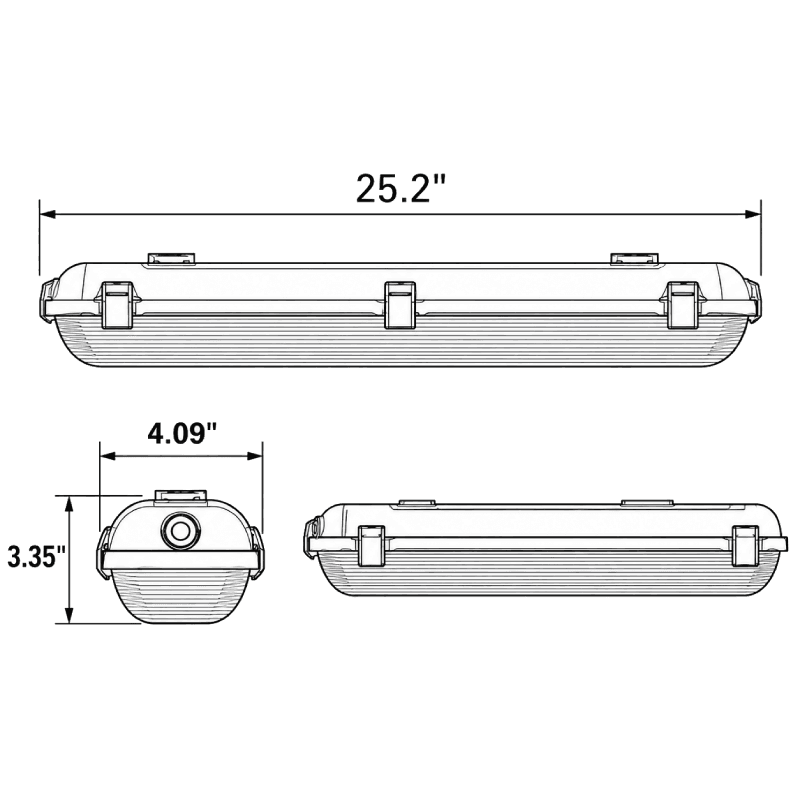

| Product Size: | 4.09" x 25.2" x 3.35" |
| Package Size: | 28'' x 4'' x 4'' |
| Unit Gross Weight: | 3.0000 Lb |
Certifications:
| Safety Compliance: | ETL |
| Energy Efficiency/Performance: | DLC |













615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
LED Vapor Tight Fixture 2FT 20W 2600Lm 3CCT IP66 Triac Dimmable
Durable and Efficient Lighting for Demanding Environments
The LED Vapor Tight Fixture 2FT 20W 2600Lm 3CCT IP66 delivers dependable, energy-efficient illumination for commercial and industrial spaces where moisture, dust, and demanding conditions are common. Combining a compact 2-foot design with durable construction and versatile lighting options, this fixture is an excellent choice for parking garages, car washes, warehouses, workshops, and other areas requiring consistent visibility.
With 20W of power and 2600 lumens, this LED vapor tight light provides bright, uniform illumination while helping reduce energy consumption compared to traditional fluorescent fixtures. Its practical design makes it suitable for both new lighting installations and upgrades to existing lighting systems.
IP66 Protection for Wet and Dusty Locations
Designed to perform in challenging environments, this IP66-rated LED vapor tight fixture features a durable polycarbonate housing and stainless steel clips that help protect its internal components.
The enclosed construction provides protection against dust and powerful water jets, making it particularly useful in parking structures, commercial facilities, car washes, and other locations exposed to moisture.
Its clear ribbed lens distributes light evenly across the surrounding area, while the wide 120-degree beam angle helps illuminate larger spaces with fewer dark spots. This combination supports comfortable visibility and practical lighting performance in busy environments.
Adjustable Color Temperature and Dimmable Lighting
One of the main advantages of this 2FT LED vapor tight light is its selectable color temperature. With 3000K, 4000K, and 5000K options, users can choose the lighting appearance that best suits their environment.
The warm white setting creates a softer atmosphere, neutral white provides balanced illumination for everyday activities, and daylight white offers a crisp, bright appearance for workspaces and commercial applications.
The fixture also features Triac dimming from 10% to 100%, allowing users to adjust brightness according to their lighting requirements. This flexibility helps create comfortable working conditions while supporting efficient energy use.
Versatile Installation and Long-Lasting Performance
The compact 2-foot design makes this vapor tight fixture suitable for locations where space is limited or a smaller lighting solution is preferred. Its surface-mount installation and included mounting accessories help simplify setup in a variety of commercial and industrial environments.
Operating on 120–277V AC, the fixture accommodates common commercial electrical systems. Its durable construction and LED technology are designed to provide consistent illumination over extended periods, reducing the need for frequent maintenance.
Optional configurations with a built-in motion sensor or emergency backup driver offer additional flexibility for projects with specific lighting requirements.
A Practical Upgrade for Commercial and Industrial Spaces
Whether illuminating a parking garage, upgrading a workshop, or improving visibility in a moisture-prone facility, the LED Vapor Tight Fixture 2FT 20W 2600Lm combines durability, efficiency, and adaptable lighting performance.
Its protective housing, selectable color temperatures, dimming capability, and compact design make it a practical alternative to conventional fluorescent vapor tight lighting.
Choose this 2FT LED vapor tight fixture for dependable illumination, flexible operation, and lasting performance in demanding commercial and industrial applications.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
