LED Gimbal Recessed Downlight Trim Retrofit 4" 12/9/6W 5CCT 850Lm
The LED Gimbal Recessed Downlight Trim Retrofit 4" features selectable 6W, 9W, and 12W wattages, five CCT options (2700K–5000K), and 850 lumens of adjustable illumination. Its directional gimbal design allows precise light aiming, making it ideal for residential, retail, hospitality, office, and commercial lighting applications.
Trusted by hundreds of businesses, municipalities & contractors See Projects

Electrical:
| Watts: | 12 |
| Operating Voltage: | 120 VAC |
| Operating Temperature: | -4° F to 113° F |
| Operating Humidity: | 20% to 90%RH |
| Power Factor (PF): | >98% |
| Power Supply Efficiency: | >98% |
Photometric:
| LED Luminous Flux (lm): | 850 |
| CRI (ra): | >90 |
| Color Temperature (Kelvin): | Tunable 2.7/3/3.5/4/5K |
| Lens type: | Frosted |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 90-100º |
Mechanical:
| IP Rating: | IP54 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | White |

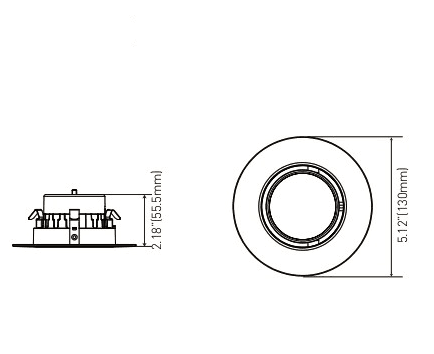

| Product Size: | 5.12" x 2.18" |
| Package Size: | 6'' x 10'' x 10'' |
| Unit Gross Weight: | 4.0000 Lb |
Certifications:
| Safety Compliance: | ETL |
| EMI/RFI compliance: | FCC |
| Energy Efficiency/Performance: | Energy Star |













615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
LED Gimbal Recessed Downlight Trim Retrofit 4" 12/9/6W 5CCT 850Lm
Transform your lighting with the LED Gimbal Recessed Downlight Trim Retrofit 4" 12/9/6W 5CCT 850Lm, a versatile and energy-efficient lighting solution designed to provide precision illumination for residential and commercial interiors. Featuring an adjustable gimbal design, selectable wattage, and five color temperature options, this retrofit downlight offers outstanding flexibility, allowing you to direct light exactly where it's needed while creating the perfect ambiance for any space.
The fully adjustable gimbal trim allows the light to be angled toward artwork, architectural features, displays, shelving, or task areas, making it an excellent choice for accent lighting as well as general illumination. Whether installed in living rooms, kitchens, retail stores, offices, galleries, hotels, or restaurants, this fixture provides targeted lighting with a clean, modern appearance.
Designed with field-selectable wattage, the fixture allows installers to choose between 6W, 9W, or 12W, providing the flexibility to optimize brightness while improving energy efficiency. This feature simplifies inventory management by offering multiple light output options in a single fixture, making it ideal for both new installations and retrofit projects.
The downlight also features five selectable color temperatures (5CCT), allowing users to choose between 2700K, 3000K, 3500K, 4000K, and 5000K during installation. Warm color temperatures create comfortable, inviting environments, while cooler settings provide crisp, vibrant illumination for workspaces, commercial interiors, and display areas.
Delivering up to 850 lumens, this LED retrofit downlight produces bright, uniform illumination while consuming significantly less energy than traditional incandescent or halogen recessed lighting. Its advanced LED technology helps lower electricity costs while providing long-lasting performance and reducing maintenance requirements.
Designed as a retrofit trim, this fixture installs easily into many existing 4-inch recessed housings, providing a quick and cost-effective lighting upgrade without extensive remodeling. It is an excellent solution for replacing outdated fixtures while improving energy efficiency and lighting quality.
The adjustable design makes this downlight particularly well suited for spaces where lighting direction is important. Highlight decorative walls, kitchen islands, artwork, merchandise displays, reception desks, or architectural details with precision while maintaining a sleek recessed appearance that complements contemporary interiors.
Built for dependable everyday performance, the fixture delivers instant-on illumination with no warm-up time, ensuring immediate full brightness whenever switched on. LED technology also produces consistent, flicker-free lighting that enhances visual comfort while reducing eye fatigue during extended use.
Ideal for living rooms, kitchens, bedrooms, hallways, offices, retail stores, hospitality venues, restaurants, museums, galleries, lobbies, reception areas, and commercial buildings, the LED Gimbal Recessed Downlight Trim Retrofit 4" offers the perfect combination of flexibility, efficiency, and modern design.
Combining adjustable gimbal functionality, selectable 6W/9W/12W wattage, five CCT options, 850-lumen output, and easy retrofit installation, this recessed LED downlight provides an excellent lighting solution for projects requiring both performance and design versatility.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
