Led Dock Light With Steel Mounting Arm 30W 4140Lm 5000K
The LED Dock Light with Steel Mounting Arm delivers 4,140 lumens of bright 5000K illumination for loading docks and warehouses. Featuring a 40-inch adjustable steel arm with dual hinges, IP65 protection, an 80° beam angle, durable aluminum construction, and an easy ON/OFF switch, it provides reliable, energy-efficient lighting for demanding industrial applications.
Trusted by hundreds of businesses, municipalities & contractors See Projects

Electrical:
| Watts: | 30 |
| Operating Voltage: | 100-277 VAC |
| Operating Temperature: | -40° F to 113° F |
| Operating Humidity: | 10% to 100%RH |
| Power Factor (PF): | >93% |
| Power Supply Efficiency: | >98% |
Photometric:
| LED Luminous Flux (lm): | 4140 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | 5000 K |
| Lens type: | Eye Shaped |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 120º |
Mechanical:
| IP Rating: | IP65 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | Yellow |
| Product Size: | 18.04" x 25.29" x 7.39" |
| Package Size: | 27'' x 13'' x 10'' |
| Unit Gross Weight: | 15.4000 Lb |
Certifications:
| Safety Compliance: | cUL |
| EMI/RFI compliance: | FCC |












615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
LED Dock Light with Steel Mounting Arm 30W 4140Lm 5000K
Improve safety and visibility in loading areas with the LED Dock Light with Steel Mounting Arm 30W 4140Lm 5000K, a heavy-duty lighting solution engineered for warehouses, distribution centers, shipping docks, and industrial facilities. Designed to withstand demanding environments, this high-performance dock light delivers bright, uniform illumination that enhances productivity while improving worker safety during loading and unloading operations.
Producing 4,140 lumens of crisp 5000K daylight illumination, this LED dock light offers excellent visibility inside trailers, loading bays, and storage areas. Its 80° beam angle is specifically designed to illuminate the full interior of most trailers, reducing shadows and dark spots so workers can safely handle cargo with greater accuracy and efficiency.
Built with a durable die-cast aluminum housing, the fixture provides excellent thermal management, helping maintain consistent performance while extending the lifespan of the LEDs. The rugged construction is designed for demanding industrial environments where reliability is essential, reducing maintenance requirements and minimizing downtime.

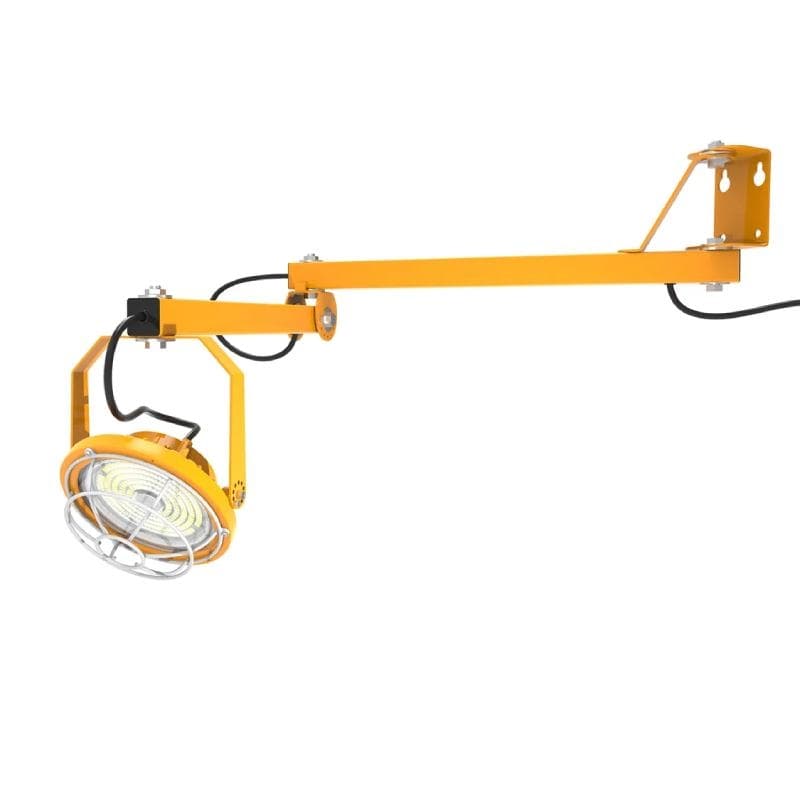

The included 40-inch steel mounting arm features dual hinge points, allowing the light to be easily positioned and adjusted as trailers move in and out of the dock. This flexible design enables users to direct the light exactly where it's needed, providing optimal illumination for a wide range of loading conditions while ensuring stable and secure support throughout daily operations.
Finished in high-visibility safety yellow, the mounting arm complies with OSHA safety color recommendations, making the fixture more noticeable in busy work areas and helping reduce the risk of accidental impacts. This combination of visibility, durability, and adjustability makes it an ideal lighting solution for fast-paced warehouse operations.
Designed with convenience in mind, the fixture includes a simple ON/OFF toggle switch for easy operation, along with a sturdy U-bracket that simplifies installation and allows secure mounting. Whether installed in a new facility or replacing outdated dock lighting, this fixture provides a quick and efficient upgrade.
Rated IP65, the LED dock light is protected against dust and water jets, making it suitable for indoor and semi-exposed industrial environments where moisture and debris are common. The high-quality LED technology delivers instant-on performance with no warm-up time or humming, ensuring full brightness the moment it's activated.
Unlike traditional lighting sources, this fixture produces no UV or infrared radiation, helping protect products, packaging materials, and personnel while creating a more comfortable working environment. The light output is soft, uniform, and easy on the eyes, reducing glare and improving visibility during extended work shifts.
As an energy-efficient LED solution, the 30W LED Dock Light significantly reduces power consumption while delivering outstanding illumination. Its long operating life helps lower maintenance costs and minimizes the need for frequent lamp replacements, making it a cost-effective investment for commercial and industrial facilities.
Ideal for loading docks, warehouse doors, shipping bays, logistics centers, navigation openings, storage racks, distribution facilities, and industrial storehouses, the LED Dock Light with Steel Mounting Arm 30W 4140Lm 5000K combines durability, flexibility, energy efficiency, and dependable performance to provide professional-grade illumination where it matters most.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
