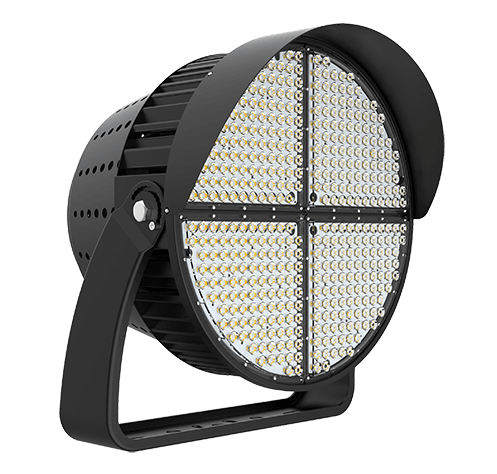

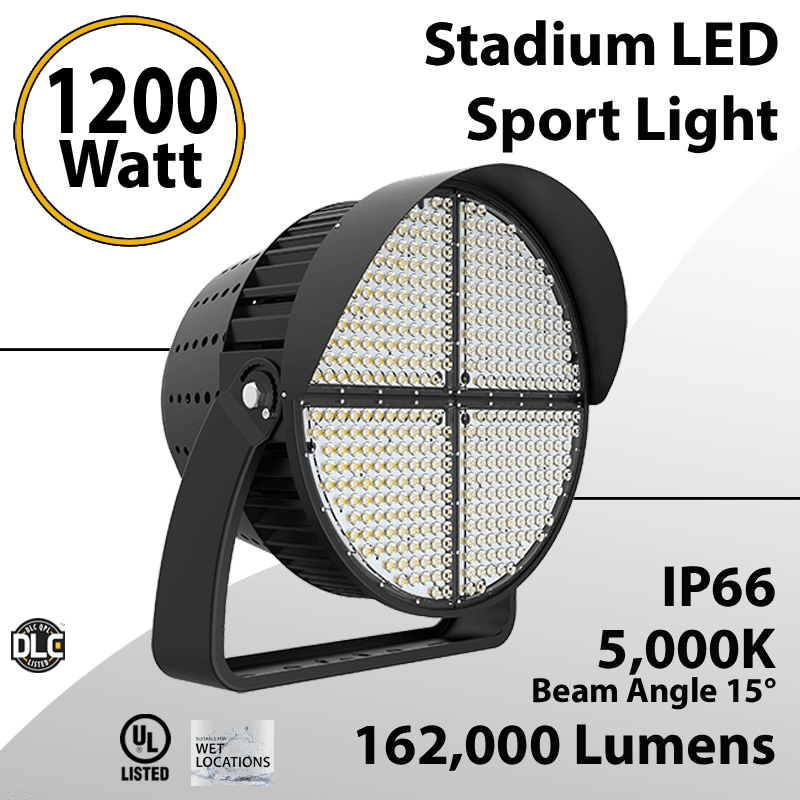

Stadium Lights Sports Lighting 1200W 162000Lm IP66 15° Beam Angle
Availability:In Stock
$1,242.00$1,055.75
Buy 10 for $1,034.64 each and save 17%
Buy 25 for $1,024.08 each and save 18%
The Stadium Lights Sports Lighting 1200W delivers 162,000 lumens of powerful illumination for stadiums, sports fields, airports, and industrial facilities. Featuring a focused 15° beam angle, bright 5000K daylight output, 0-10V dimming, premium Inventronics driver, and durable IP66 waterproof protection, this fixture ensures reliable outdoor performance. Built with cold forging technology, it also includes an adjustable mounting bracket for easier installation.
Trusted by hundreds of businesses, municipalities & contractors See Projects
Specifications:
SKU: FBJ-RA6-1PJ6K-50
Equals up to 2x 1000W HID
Electrical:
| Watts: | 1200 |
| Operating Voltage: | 120-277 VAC |
| Operating Temperature: | -40° F to 113° F |
| Operating Humidity: | 20% to 90%RH |
| Power Factor (PF): | >95% |
| Power Supply Efficiency: | >95% |
Photometric:
| LED Luminous Flux (lm): | 162000 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | 5000 K |
| Lens type: | Eye Shaped |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 15°º |
Mechanical:
| IP Rating: | IP66 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | Black |

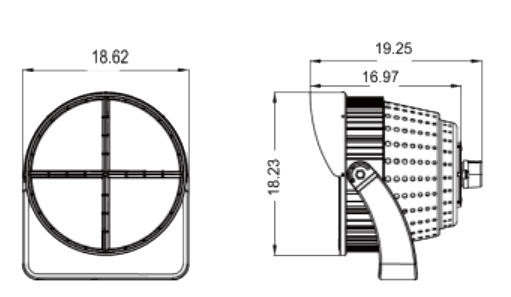

| Product Size: | 19.25" x 18.62" x 18.23" |
| Package Size: | 21.25'' x 20.62'' x 20.23'' |
| Unit Gross Weight: | 39.0000 Lb |
Certifications:
| Safety Compliance: | UL |
| Energy Efficiency/Performance: | DLC |
APPLICATIONS:
Baseball fieldSports FieldsStadiumsAnd more
615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
Stadium Lights Sports Lighting 1200W 162000Lm 5000K IP66 UL DLC
Professional LED Sports & Stadium Lighting Solution
The Stadium Lights Sports Lighting 1200W 162000Lm is a high-performance LED lighting fixture engineered for stadiums, sports complexes, race tracks, airports, industrial facilities, and other demanding outdoor applications. Designed for maximum brightness, durability, and efficiency, this powerful stadium light delivers reliable illumination for large-scale commercial and industrial environments.
Producing an impressive 162,000 lumens, this fixture provides strong and uniform lighting coverage that improves visibility, safety, and performance in outdoor spaces. Its advanced LED technology offers significantly lower energy consumption and maintenance costs compared to traditional metal halide or HID fixtures while maintaining exceptional brightness and long operational life.
Focused 15° Beam Angle for Long-Distance Illumination
This LED sports light features a precise 15-degree beam angle, specifically designed for high-mast installations and long-distance illumination. The narrow beam distribution allows the fixture to direct powerful light exactly where it is needed, making it ideal for:
- Stadiums
- Sports arenas
- Race tracks
- Ports and terminals
- Airports
- Industrial yards
- Large outdoor facilities
The focused beam improves lighting efficiency and reduces unnecessary light spill.
Bright 5000K Daylight Output
With a crisp 5000K daylight color temperature, this fixture delivers bright white illumination that enhances visibility and creates a clear, professional lighting environment. The daylight output helps reduce shadows while improving visibility for athletes, workers, drivers, and spectators.
120-277VAC Input & 0-10V Dimming
Designed for versatile commercial installations, this stadium light operates on a wide 120-277VAC input range, making it compatible with many industrial and commercial electrical systems.
The fixture also includes 0-10V dimming capability, allowing adjustable brightness levels for improved energy efficiency and customized lighting control depending on the application or operating schedule.
Premium Inventronics Driver
This LED stadium light is equipped with a reliable Inventronics driver, known for stable performance, energy efficiency, and long operational lifespan. The high-quality driver helps ensure consistent illumination and dependable operation even in demanding outdoor conditions.
Cold Forging Technology for Superior Heat Management
Manufactured using advanced cold forging technology, this fixture offers exceptional structural durability and efficient heat dissipation. Proper thermal management helps:
- Prevent overheating
- Maintain stable lumen output
- Extend fixture lifespan
- Reduce maintenance requirements
This makes the fixture ideal for continuous-use applications where reliability is essential.
Durable IP66 Waterproof Construction
Featuring a rugged IP66 waterproof rating, this sports lighting fixture is protected against:
- Heavy rain
- Dust
- Moisture
- Outdoor debris
- Harsh environmental conditions
Its durable black finish provides a modern professional appearance while enhancing resistance to corrosion and outdoor wear.
Includes Mounting Bracket
For easier installation and secure positioning, the fixture comes complete with an included mounting bracket. The bracket allows installers to conveniently mount and adjust the lighting angle based on the specific project requirements, making installation faster and more efficient for stadiums, sports fields, and industrial lighting systems.
Including the mounting bracket also helps reduce the need for additional hardware purchases and simplifies setup for contractors and maintenance teams.
UL & DLC Certified Quality
This LED sports lighting fixture is both UL Listed and DLC Certified, ensuring high standards for:
- Safety
- Energy efficiency
- Product reliability
- Commercial-grade performance
These certifications make it an excellent lighting solution for municipalities, schools, commercial properties, sports venues, and industrial projects.
Ideal Applications
The 1200W LED Stadium Sports Lighting Fixture is perfect for:
- Stadiums
- Sports complexes
- Football fields
- Race tracks
- Airports
- Ports and terminals
- Industrial facilities
- Parking lots
- Warehouses
- High-mast outdoor lighting
With powerful 162,000 lumens, focused 15° beam angle, durable IP66 construction, premium components, and an included mounting bracket, this LED stadium light delivers dependable and energy-efficient performance for demanding outdoor lighting applications.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
Specifications:
SKU: FBJ-RA6-1PJ6K-50
Equals up to 2x 1000W HID
Electrical:
| Watts: | 1200 |
| Operating Voltage: | 120-277 VAC |
| Operating Temperature: | -40° F to 113° F |
| Operating Humidity: | 20% to 90%RH |
| Power Factor (PF): | >95% |
| Power Supply Efficiency: | >95% |
Photometric:
| LED Luminous Flux (lm): | 162000 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | 5000 K |
| Lens type: | Eye Shaped |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 15°º |
Mechanical:
| IP Rating: | IP66 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | Black |
| Product Size: | 19.25" x 18.62" x 18.23" |
| Package Size: | 21.25'' x 20.62'' x 20.23'' |
| Unit Gross Weight: | 39.0000 Lb |
Certifications:
| Safety Compliance: | UL |
| Energy Efficiency/Performance: | DLC |
APPLICATIONS:
Baseball fieldSports FieldsStadiumsAnd more
615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
Stadium Lights Sports Lighting 1200W 162000Lm 5000K IP66 UL DLC
Professional LED Sports & Stadium Lighting Solution
The Stadium Lights Sports Lighting 1200W 162000Lm is a high-performance LED lighting fixture engineered for stadiums, sports complexes, race tracks, airports, industrial facilities, and other demanding outdoor applications. Designed for maximum brightness, durability, and efficiency, this powerful stadium light delivers reliable illumination for large-scale commercial and industrial environments.
Producing an impressive 162,000 lumens, this fixture provides strong and uniform lighting coverage that improves visibility, safety, and performance in outdoor spaces. Its advanced LED technology offers significantly lower energy consumption and maintenance costs compared to traditional metal halide or HID fixtures while maintaining exceptional brightness and long operational life.
Focused 15° Beam Angle for Long-Distance Illumination
This LED sports light features a precise 15-degree beam angle, specifically designed for high-mast installations and long-distance illumination. The narrow beam distribution allows the fixture to direct powerful light exactly where it is needed, making it ideal for:
- Stadiums
- Sports arenas
- Race tracks
- Ports and terminals
- Airports
- Industrial yards
- Large outdoor facilities
The focused beam improves lighting efficiency and reduces unnecessary light spill.
Bright 5000K Daylight Output
With a crisp 5000K daylight color temperature, this fixture delivers bright white illumination that enhances visibility and creates a clear, professional lighting environment. The daylight output helps reduce shadows while improving visibility for athletes, workers, drivers, and spectators.
120-277VAC Input & 0-10V Dimming
Designed for versatile commercial installations, this stadium light operates on a wide 120-277VAC input range, making it compatible with many industrial and commercial electrical systems.
The fixture also includes 0-10V dimming capability, allowing adjustable brightness levels for improved energy efficiency and customized lighting control depending on the application or operating schedule.
Premium Inventronics Driver
This LED stadium light is equipped with a reliable Inventronics driver, known for stable performance, energy efficiency, and long operational lifespan. The high-quality driver helps ensure consistent illumination and dependable operation even in demanding outdoor conditions.
Cold Forging Technology for Superior Heat Management
Manufactured using advanced cold forging technology, this fixture offers exceptional structural durability and efficient heat dissipation. Proper thermal management helps:
- Prevent overheating
- Maintain stable lumen output
- Extend fixture lifespan
- Reduce maintenance requirements
This makes the fixture ideal for continuous-use applications where reliability is essential.
Durable IP66 Waterproof Construction
Featuring a rugged IP66 waterproof rating, this sports lighting fixture is protected against:
- Heavy rain
- Dust
- Moisture
- Outdoor debris
- Harsh environmental conditions
Its durable black finish provides a modern professional appearance while enhancing resistance to corrosion and outdoor wear.
Includes Mounting Bracket
For easier installation and secure positioning, the fixture comes complete with an included mounting bracket. The bracket allows installers to conveniently mount and adjust the lighting angle based on the specific project requirements, making installation faster and more efficient for stadiums, sports fields, and industrial lighting systems.
Including the mounting bracket also helps reduce the need for additional hardware purchases and simplifies setup for contractors and maintenance teams.
UL & DLC Certified Quality
This LED sports lighting fixture is both UL Listed and DLC Certified, ensuring high standards for:
- Safety
- Energy efficiency
- Product reliability
- Commercial-grade performance
These certifications make it an excellent lighting solution for municipalities, schools, commercial properties, sports venues, and industrial projects.
Ideal Applications
The 1200W LED Stadium Sports Lighting Fixture is perfect for:
- Stadiums
- Sports complexes
- Football fields
- Race tracks
- Airports
- Ports and terminals
- Industrial facilities
- Parking lots
- Warehouses
- High-mast outdoor lighting
With powerful 162,000 lumens, focused 15° beam angle, durable IP66 construction, premium components, and an included mounting bracket, this LED stadium light delivers dependable and energy-efficient performance for demanding outdoor lighting applications.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
