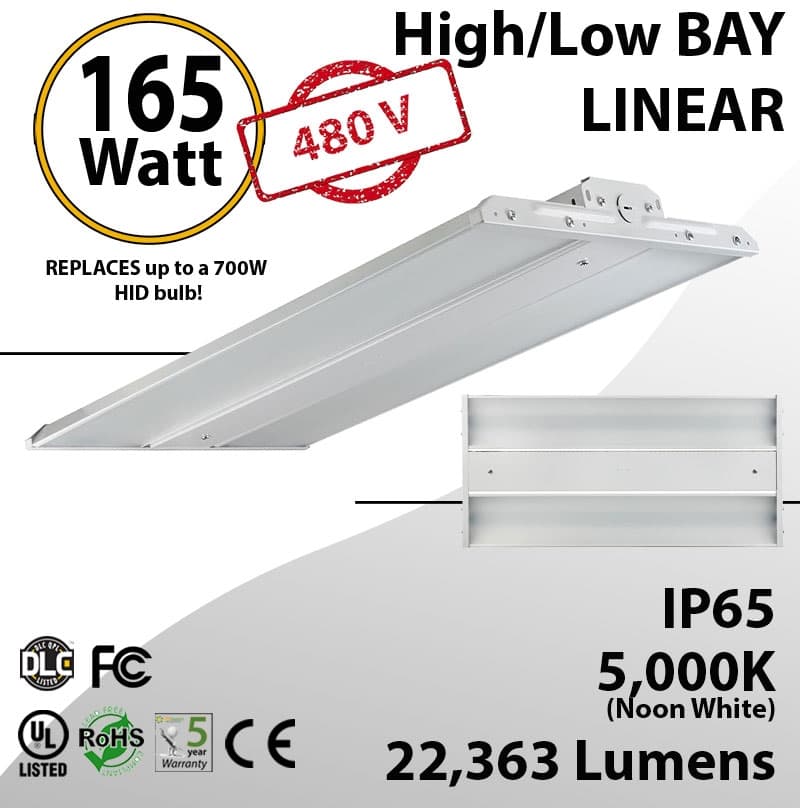

LED Linear High Bay 480V Fixture 2Ft. 165W 22363 Lumens 5000K UL DLC
Availability:In Stock
$194.00$164.95
165w LED Linear High Bay Low Bay light fixture 200-480VAC delivers 22363 lumens, making it an excellent replacement for linear fluorescent fixtures and round metal halide spun reflectors up to 750 watts. Wide angle light distribution. The frosted lens will not produce eye straining. Mounting these fixtures aligned with the shelves is more efficient than round fixtures that waste a big portion of the light shining at the top of the shelves. Especially designed for warehouses and large big box retail stores, indoor courts, etc.. This fixture can be made dimmable to 10% with appropriate LED 0-10 VDC dimmer. Comes with V-hook clips, chains and frosted lens. Good for mounting height from 10 ft to 30 feet from the floor. Easy to install and clean, can be used in wet locations.
Click here to see other Linear High Bay Lights.
Trusted by hundreds of businesses, municipalities & contractors See Projects
Specifications:
SKU: N2C-EHN-1F22J-50
Replaces up to 6 T5 HO!
Electrical:
| Watts: | 165 |
| Operating Voltage: | 200-480 VAC |
| Operating Temperature: | -22° F to 122° F |
| Operating Humidity: | 20% to 90%RH |
| Power Factor (PF): | >98% |
| Power Supply Efficiency: | >96% |
Photometric:
| LED Luminous Flux (lm): | 22363 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | 5000 K |
| Lens type: | Frosted |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 160º |
Mechanical:
| IP Rating: | IP64 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | White |
| Product Size: | 24X12"X4.62" |
| Package Size: | 26'' x 21'' x 9'' |
| Unit Gross Weight: | 14.0000 Lb |
Certifications:
| Safety Compliance: | CE, cUL, UL |
| EMI/RFI compliance: | FCC |
| Energy Efficiency/Performance: | DLC |
| Environmental: | RoHS |
APPLICATIONS:
Store-LightingWarehouse StorageShelving StorageAnd more
