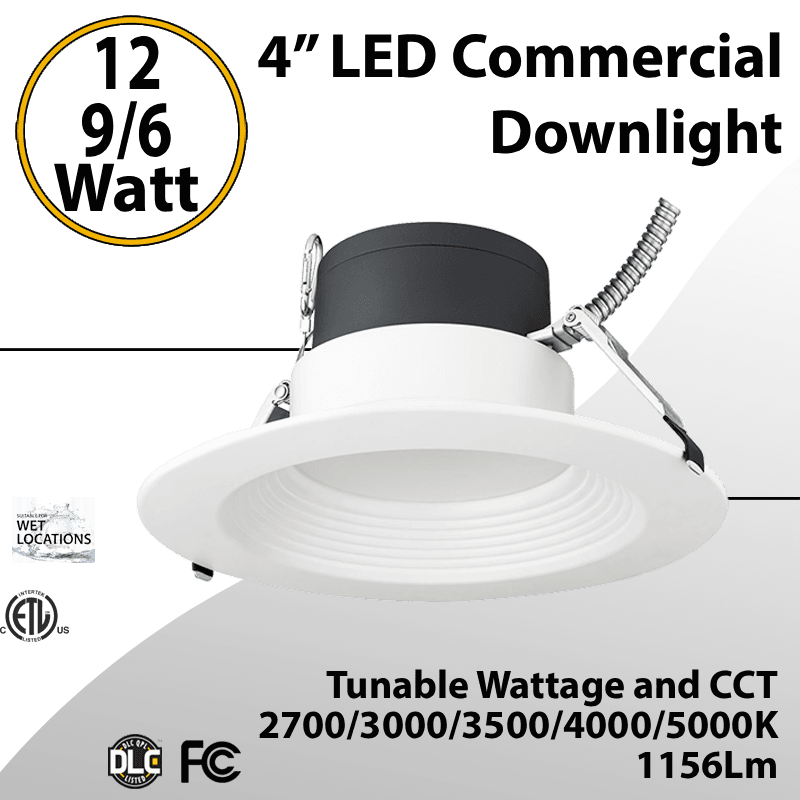

LED Commercial Downlight 4" 12/9/6W 1156Lm 120-277V 27/30/35/40/50K
The LED Commercial Downlight 4" features selectable 6W, 9W, and 12W wattages, five CCT options (2700K–5000K), 1,156 lumens, CRI >90, flicker-free performance, and 0–10V dimming. Designed for 120–277V systems, its glare-reducing baffle trim makes it ideal for offices, retail stores, hospitality, healthcare, educational, and residential applications.
Trusted by hundreds of businesses, municipalities & contractors See Projects

Electrical:
| Watts: | 12 |
| Operating Voltage: | 100-277 VAC |
| Operating Temperature: | 5° F to 113° F |
| Operating Humidity: | 20% to 90%RH |
| Power Factor (PF): | >98% |
| Power Supply Efficiency: | >98% |
Photometric:
| LED Luminous Flux (lm): | 1156 |
| CRI (ra): | >90 |
| Color Temperature (Kelvin): | Tunable 2.7/3/3.5/4/5K |
| Lens type: | Frosted |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 120º |
Mechanical:
| IP Rating: | IP54 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | White |

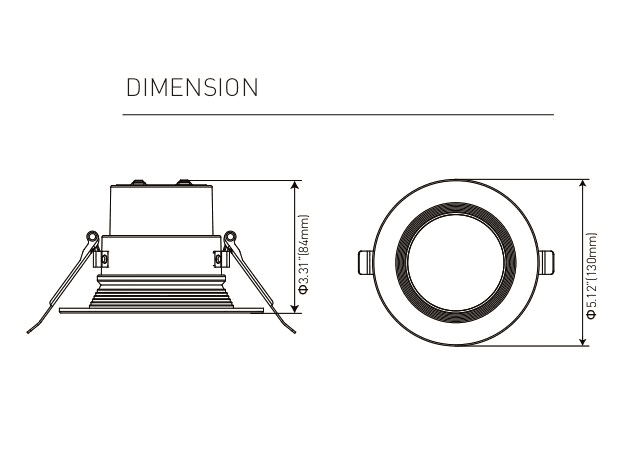

| Product Size: | Φ3.31" x 5.12" |
| Package Size: | 5'' x 5'' x 5'' |
| Unit Gross Weight: | 1.0000 Lb |
Certifications:
| Safety Compliance: | ETL |
| EMI/RFI compliance: | FCC |
| Energy Efficiency/Performance: | DLC |













615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
LED Commercial Downlight 4" 12/9/6W 1156Lm 120-277V 2700K/3000K/3500K/4000K/5000K
Upgrade your lighting with the LED Commercial Downlight 4", an energy-efficient recessed fixture designed to deliver exceptional illumination, flexibility, and long-lasting performance for commercial and residential applications. Featuring a sleek baffle trim design, this downlight reduces glare while providing a clean architectural appearance that blends seamlessly into modern interiors. Whether you're lighting offices, retail stores, hospitality venues, educational facilities, healthcare buildings, or multifamily residences, this fixture offers reliable, high-quality illumination that enhances both comfort and visibility.

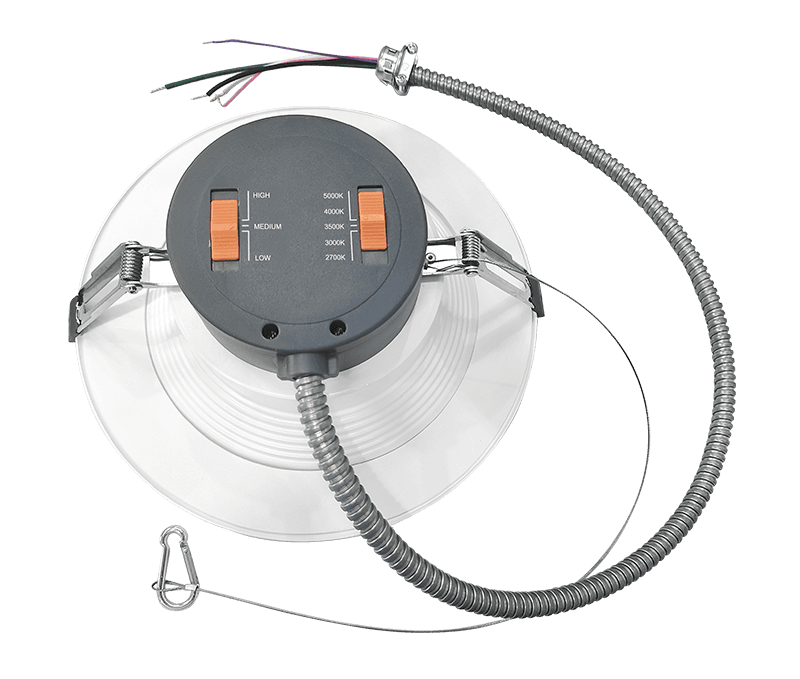

Designed with field-selectable wattage, this versatile LED downlight allows installers to choose between 6W, 9W, or 12W during installation, making it easy to achieve the ideal balance between brightness and energy efficiency. This flexibility reduces inventory requirements and simplifies project planning, as one fixture can accommodate multiple lighting needs without requiring different models.
The fixture also features five selectable color temperatures—2700K, 3000K, 3500K, 4000K, and 5000K—allowing lighting designers, contractors, and property owners to customize the ambiance of each space. Choose warmer tones for restaurants, hotels, and residential settings, or cooler daylight options for offices, classrooms, healthcare facilities, and commercial environments where visibility and productivity are priorities.
Delivering up to 1,156 lumens with an impressive 100 lumens per watt, this LED downlight provides bright, uniform illumination while significantly reducing energy consumption compared to traditional lighting technologies. The fixture is engineered with a Color Rendering Index (CRI) greater than 90, ensuring colors appear vibrant, accurate, and natural. This makes it an excellent choice for retail displays, hospitality spaces, healthcare environments, and anywhere true color representation is essential.
To further enhance occupant comfort, the downlight offers flicker-free performance, minimizing eye fatigue and creating a more pleasant lighting experience in spaces where people spend extended periods. It also supports smooth 0–10V dimming, allowing users to adjust light levels for different activities while improving energy savings and creating the perfect atmosphere.
Compatible with 120–277V universal input, this fixture integrates easily into a wide range of commercial electrical systems, making it suitable for both new construction projects and retrofit installations. Its advanced LED technology delivers dependable, maintenance-friendly performance, helping reduce operating costs while extending the lifespan of the lighting system.
The baffle trim not only enhances the fixture's contemporary appearance but also improves visual comfort by controlling glare and providing a softer, more focused beam of light. This makes it ideal for reception areas, conference rooms, hallways, corridors, lobbies, shopping centers, restaurants, apartment buildings, and countless other indoor applications where both aesthetics and performance matter.
Built for versatility, efficiency, and professional performance, the LED Commercial Downlight 4" offers an excellent solution for contractors, architects, designers, and facility managers seeking a premium recessed lighting fixture. With selectable wattage, five CCT options, CRI >90, flicker-free operation, 0–10V dimming, and high energy efficiency, it provides the flexibility needed to meet the demands of today's commercial lighting projects while delivering outstanding visual comfort and long-term value.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
