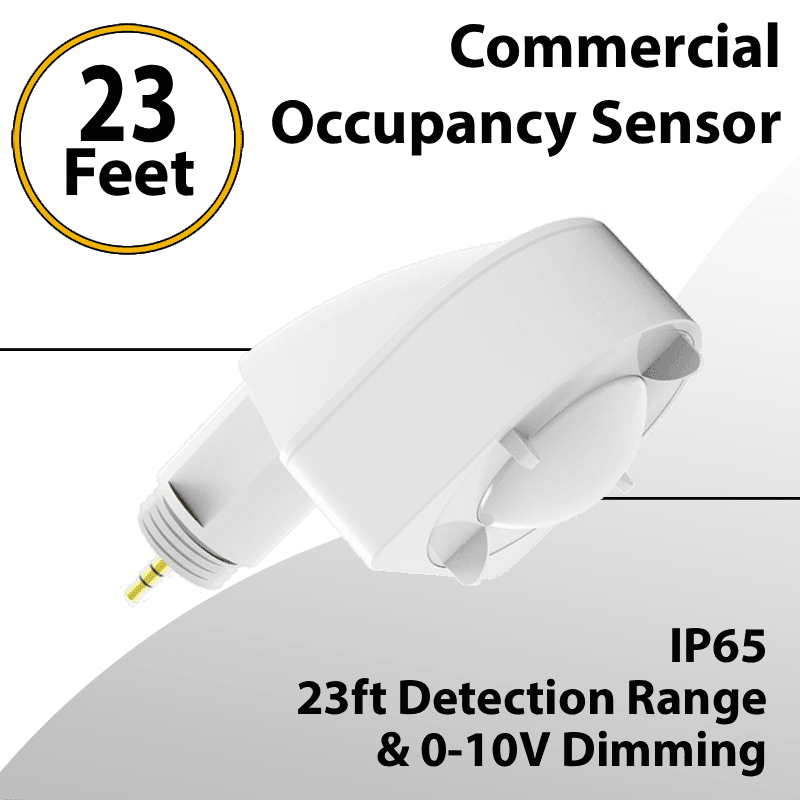

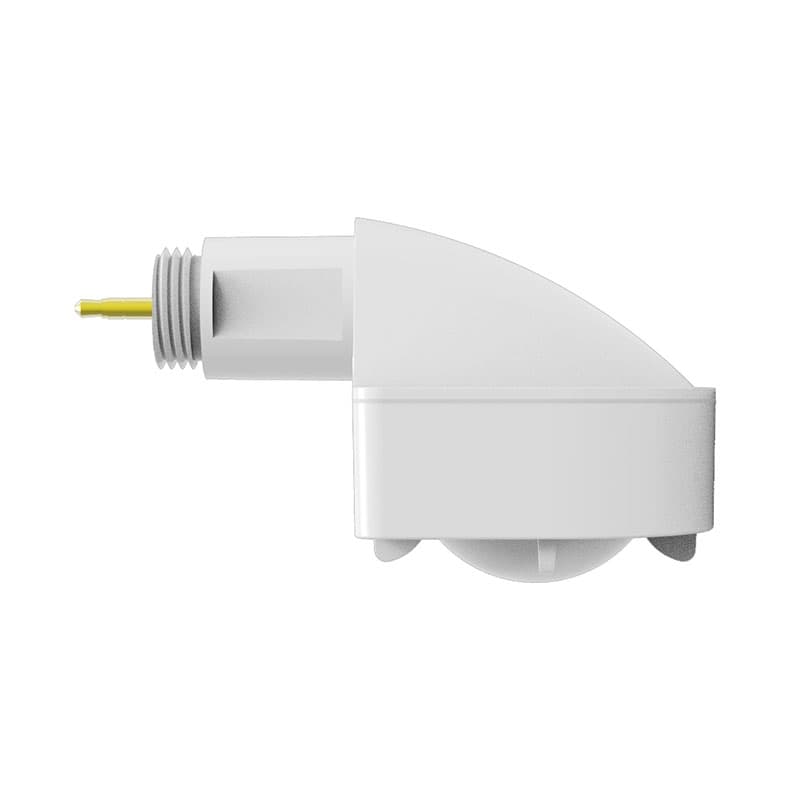

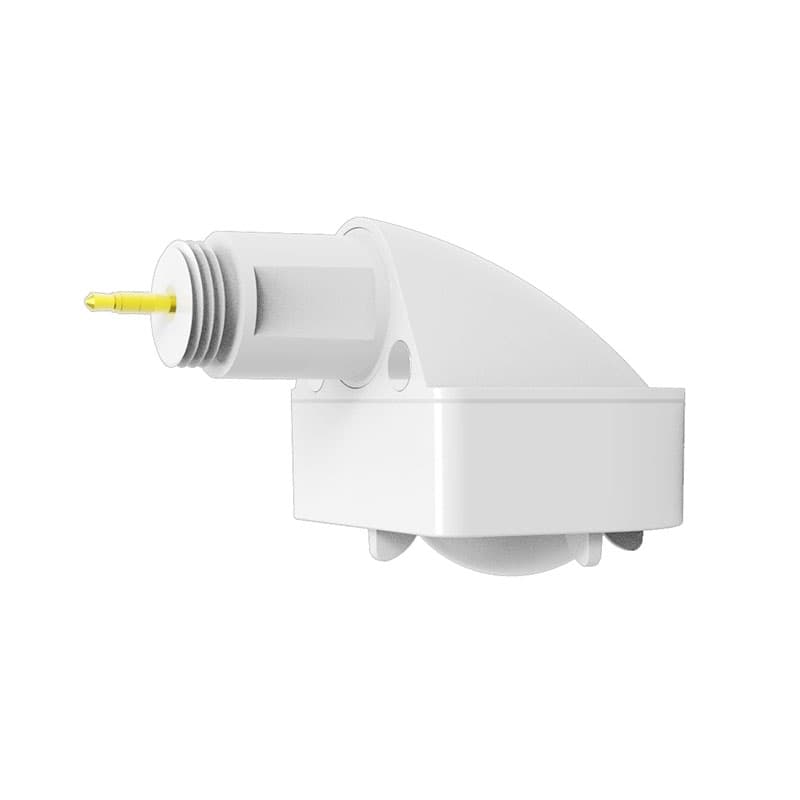

Commercial Occupancy Sensor Daylight Harvesting 0-10V Dimming Control
Optimize energy efficiency with the Commercial Occupancy Sensor Daylight Harvesting 0-10V Dimming Control. This IP65-rated sensor features adjustable daylight harvesting, occupancy detection up to 23ft, and 0-10V dimming control for LED lighting systems. Available for high bay and low bay applications, it is ideal for warehouses, factories, commercial buildings, and industrial facilities.
Trusted by hundreds of businesses, municipalities & contractors See Projects
Electrical:
| Watts: | n/a |
Photometric:
| LED Luminous Flux (lm): | n/a |
| CRI (ra): | >n/a |
| Color Temperature (Kelvin): | n/a |
| Lens type: | None |
| Expected Life: | n/a hrs. |
| L70: | n/a hrs. |
| Beam Angle: | n/aº |
Mechanical:
| IP Rating: | IP65 |
| Base Type: | Hardwired |
| Product Size: | 0 |
| Unit Gross Weight: | 3.0000 Lb |
615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
Commercial Occupancy Sensor Daylight Harvesting 0-10V Dimming Control
Improve lighting efficiency and reduce energy consumption with the Commercial Occupancy Sensor Daylight Harvesting 0-10V Dimming Control, a professional-grade solution designed for commercial and industrial LED lighting systems. This sensor combines occupancy detection, daylight harvesting, and 0-10V dimming control to automatically adjust lighting levels based on space usage and available natural light.
Built for demanding environments, the sensor features an IP65-rated enclosure, making it suitable for warehouses, factories, manufacturing facilities, parking structures, gymnasiums, retail spaces, and other commercial applications. The unit operates on 12V-24V DC power and provides a 0-10V dimming output with up to 30mA sinking current for reliable LED fixture control.
Two lens options are available to accommodate different mounting heights. The L7 lens is optimized for low bay installations with mounting heights up to 13ft, while the L8 lens is designed for high bay applications with mounting heights up to 40ft. Both versions offer a maximum detection radius of 23ft.
For additional flexibility, users can select adjustable time delays of 10 seconds, 1 minute, 5 minutes, or 15 minutes. The integrated daylight harvesting function allows light-level settings of 300 lux, 500 lux, 800 lux, or disable mode, helping maximize energy savings without compromising visibility.
The sensor is engineered for reliable performance in harsh conditions, supporting operating temperatures from -4°F to 140°F (-20°C to 60°C) and humidity levels up to 95% RH.
Whether upgrading a warehouse, factory, commercial building, or industrial facility, the Commercial Occupancy Sensor Daylight Harvesting 0-10V Dimming Control delivers intelligent lighting automation, improved energy efficiency, and dependable long-term performance.
