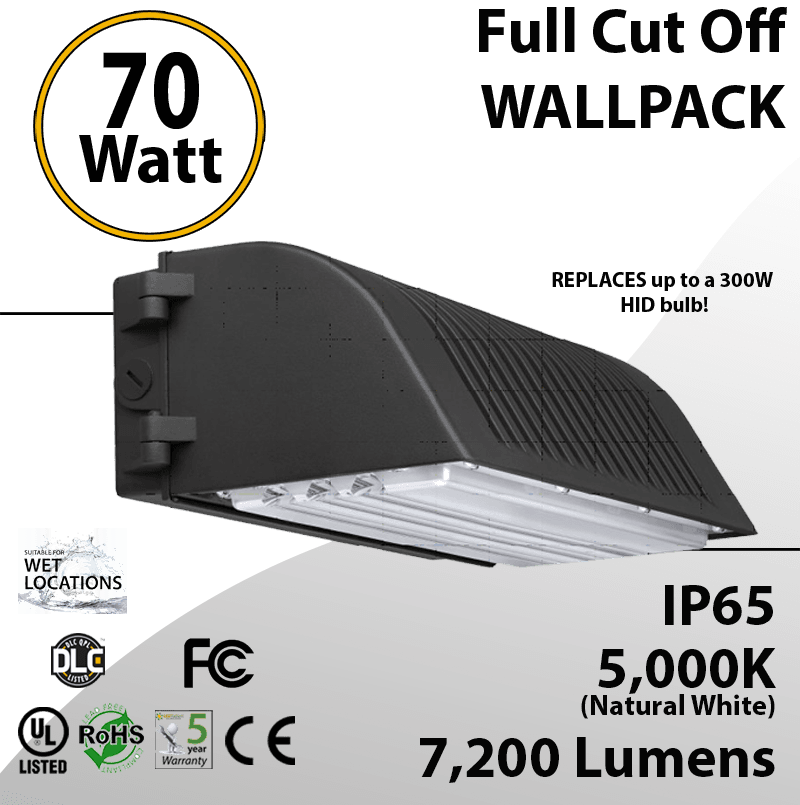

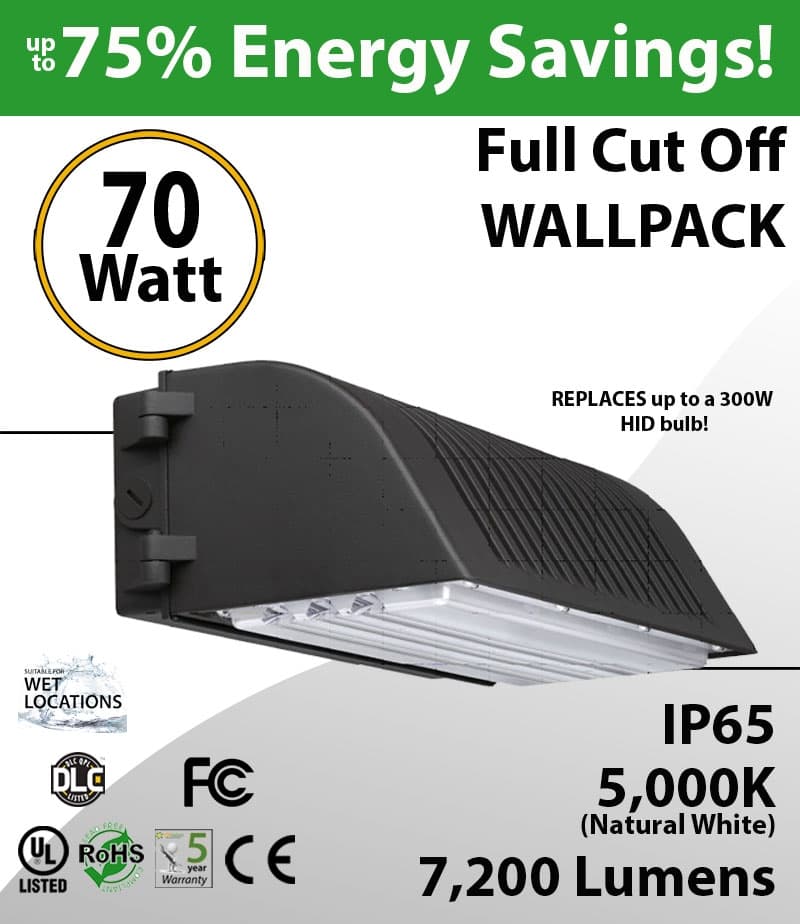

70W LED Full Cut off Wall Pack 7200 Lumens 5000K IP65 UL DLC
Availability:In Stock
$122.00$103.95
Buy 10 for $101.87 each and save 16%
Buy 25 for $100.83 each and save 17%
The 70W LED Full Cut Off Wall Pack combines powerful performance, energy efficiency, and durability to provide contractors and electricians with a reliable lighting solution for outdoor applications. With its integrated dusk to dawn control, durable construction, and high-quality lighting output, this Wall Pack offers unmatched performance and reliability, making it the ideal choice for a wide range of outdoor lighting projects.
Trusted by hundreds of businesses, municipalities & contractors See Projects
Specifications:
SKU: WFW-TZP-70720-50
Equal or Replace up to 200 watt HID
Electrical:
| Watts: | 70 |
| Operating Voltage: | 100-277 VAC |
| Operating Temperature: | -22° F to 113° F |
| Operating Humidity: | 10% to 100%RH |
| Power Factor (PF): | >95% |
| Power Supply Efficiency: | >90% |
Photometric:
| LED Luminous Flux (lm): | 7200 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | 5000 K |
| Lens type: | Prismatic |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 90º |
Mechanical:
| IP Rating: | IP65 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | Bronze |

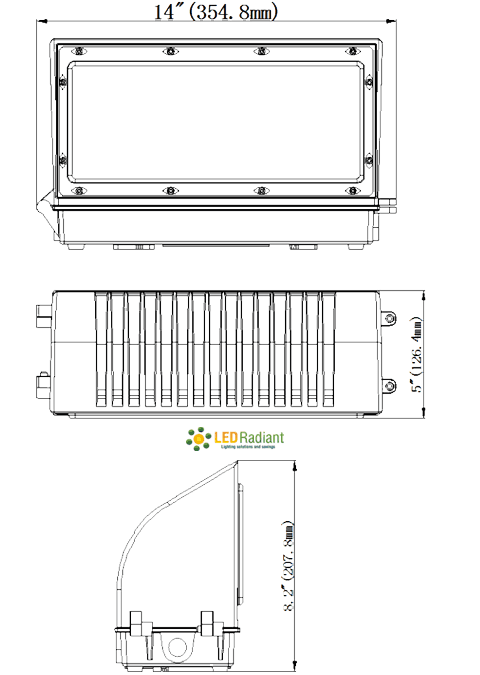

| Product Size: | 14 x 8.2 x 5 |
| Package Size: | 6'' x 16'' x 11'' |
| Unit Gross Weight: | 8.0000 Lb |
Certifications:
| Safety Compliance: | CE, cUL, UL |
| EMI/RFI compliance: | FCC |
| Energy Efficiency/Performance: | DLC |
| Environmental: | RoHS |
APPLICATIONS:
Cutoff EntranceCutoff GatesCutoff WallAnd more
615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
Powerful and Reliable: 70W LED Full Cut Off Wall Pack 7200 Lumens 5000K IP65 UL DLC
Introduction
The 70W LED Full Cut Off Wall Pack is a robust and efficient lighting solution designed for outdoor applications. With its high lumen output, durable construction, and integrated dusk to dawn control, this Wall Pack offers contractors and electricians a dependable and energy-saving lighting option for illuminating building exteriors, walkways, parking lots, and more.
High-Performance Lighting
With a powerful output of 7200 lumens, the 70W LED Wall Pack provides exceptional brightness, equivalent to a 300W HID bulb. Its full cut-off design ensures precise light distribution, minimizing light pollution and maximizing energy efficiency. With a power factor exceeding 95% and a power supply efficiency of over 90%, this Wall Pack delivers consistent and reliable performance while reducing energy consumption and operating costs.
Integrated Dusk to Dawn Control
The 70W LED Wall Pack comes equipped with integrated dusk to dawn control, allowing it to automatically turn on at dusk and off at dawn. This feature not only enhances convenience but also maximizes energy savings by ensuring that the Wall Pack only operates when needed. By eliminating unnecessary overnight lighting, the Wall Pack helps reduce electricity usage and extends its lifespan, resulting in significant cost savings and a lower environmental impact.
Durable and Weatherproof
Built to withstand harsh outdoor conditions, the LEDRADIANT Wall Pack boasts an IP65 rating, making it waterproof and resistant to dust, moisture, and corrosion. Its rugged construction and high-quality materials ensure long-lasting durability and reliable performance, even in extreme weather environments. With an expected lifespan of over 70,000 hours and an L70 rating of 50,000 hours, this Wall Pack offers extended longevity and minimal maintenance requirements, further enhancing its value and reliability.
Enhanced Lighting Quality
Featuring a prismatic lens type, the 70W LED Wall Pack provides uniform light distribution and minimizes glare, creating a comfortable and visually appealing lighting environment. The high color rendering index (CRI) of over 80 ensures that colors appear vibrant and true to life, enhancing visibility and safety in outdoor spaces.
Easy Installation
Designed for simple and hassle-free installation, the 70W LED Full Cut Off Wall Pack is compatible with standard electrical systems and mounting configurations. Its lightweight and compact design make it easy to handle and install, allowing contractors and electricians to quickly and efficiently set up the Wall Pack in various outdoor locations.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
Specifications:
SKU: WFW-TZP-70720-50
Equal or Replace up to 200 watt HID
Electrical:
| Watts: | 70 |
| Operating Voltage: | 100-277 VAC |
| Operating Temperature: | -22° F to 113° F |
| Operating Humidity: | 10% to 100%RH |
| Power Factor (PF): | >95% |
| Power Supply Efficiency: | >90% |
Photometric:
| LED Luminous Flux (lm): | 7200 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | 5000 K |
| Lens type: | Prismatic |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 90º |
Mechanical:
| IP Rating: | IP65 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | Bronze |
| Product Size: | 14 x 8.2 x 5 |
| Package Size: | 6'' x 16'' x 11'' |
| Unit Gross Weight: | 8.0000 Lb |
Certifications:
| Safety Compliance: | CE, cUL, UL |
| EMI/RFI compliance: | FCC |
| Energy Efficiency/Performance: | DLC |
| Environmental: | RoHS |
APPLICATIONS:
Cutoff EntranceCutoff GatesCutoff WallAnd more
615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
[email protected] — www.ledradiant.com
Powerful and Reliable: 70W LED Full Cut Off Wall Pack 7200 Lumens 5000K IP65 UL DLC
Introduction
The 70W LED Full Cut Off Wall Pack is a robust and efficient lighting solution designed for outdoor applications. With its high lumen output, durable construction, and integrated dusk to dawn control, this Wall Pack offers contractors and electricians a dependable and energy-saving lighting option for illuminating building exteriors, walkways, parking lots, and more.
High-Performance Lighting
With a powerful output of 7200 lumens, the 70W LED Wall Pack provides exceptional brightness, equivalent to a 300W HID bulb. Its full cut-off design ensures precise light distribution, minimizing light pollution and maximizing energy efficiency. With a power factor exceeding 95% and a power supply efficiency of over 90%, this Wall Pack delivers consistent and reliable performance while reducing energy consumption and operating costs.
Integrated Dusk to Dawn Control
The 70W LED Wall Pack comes equipped with integrated dusk to dawn control, allowing it to automatically turn on at dusk and off at dawn. This feature not only enhances convenience but also maximizes energy savings by ensuring that the Wall Pack only operates when needed. By eliminating unnecessary overnight lighting, the Wall Pack helps reduce electricity usage and extends its lifespan, resulting in significant cost savings and a lower environmental impact.
Durable and Weatherproof
Built to withstand harsh outdoor conditions, the LEDRADIANT Wall Pack boasts an IP65 rating, making it waterproof and resistant to dust, moisture, and corrosion. Its rugged construction and high-quality materials ensure long-lasting durability and reliable performance, even in extreme weather environments. With an expected lifespan of over 70,000 hours and an L70 rating of 50,000 hours, this Wall Pack offers extended longevity and minimal maintenance requirements, further enhancing its value and reliability.
Enhanced Lighting Quality
Featuring a prismatic lens type, the 70W LED Wall Pack provides uniform light distribution and minimizes glare, creating a comfortable and visually appealing lighting environment. The high color rendering index (CRI) of over 80 ensures that colors appear vibrant and true to life, enhancing visibility and safety in outdoor spaces.
Easy Installation
Designed for simple and hassle-free installation, the 70W LED Full Cut Off Wall Pack is compatible with standard electrical systems and mounting configurations. Its lightweight and compact design make it easy to handle and install, allowing contractors and electricians to quickly and efficiently set up the Wall Pack in various outdoor locations.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
